Atlas Automotive Equipment 9HP Gas Air Compressor w/ Honda Motor & 30 gallon tank
Features and Benefits:
- 2-Stage Pump
- 9 Horsepower, GX270 Honda Engine
- 30 Gallon Horizontal Tank (Made in the USA)
- Air Output 145-175 PSI
- Set of Vibro-Isolation Pads Included
- Finned tank inlet tube for reduced tank water accumulation
- Heavy Duty Metal Belt Guard
- 1 Year Parts Only Warranty
- This part number FREIGHT PREPAID
The Atlas® Air Force AF9G is equipped with a super reliable Honda 9 Horsepower electric start gas engine. The AF9G gas powered compressor features a pneumatic throttle control, electric start, vibro-isolator pads, charging system, and head unloaders. This is the perfect air compressor for any mobile service truck.
Atlas® Air Force AF9G operates between 145-175 PSI. This compressor delivers plenty of air to power large impact wrenches needed to remove those stubborn BUDD wheel lug nuts. The dependable Honda engine and the Atlas® compressor pump are designed and engineered to provide years of service. The AF9G also comes standard with a USA made 30 gallon steel tank.
The Atlas® Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas® Air Force compressors are built to the same exacting standards as the entire line of Atlas® professional grade automotive equipment

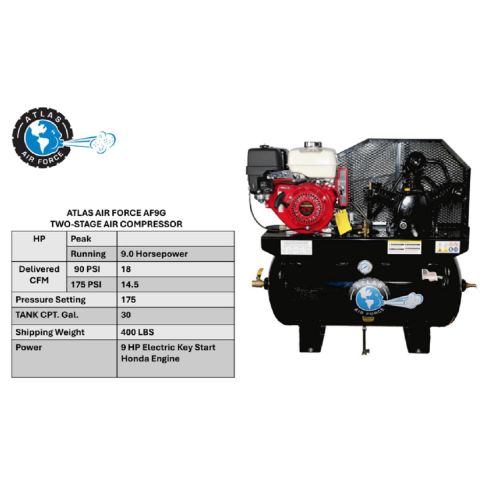

Atlas® Air Force AF9G Specifications
- Motor Running: 9 Horsepower
- Pressure Setting: 145-175 PSI
- Delivered CFM at 90 PSI: 18
- Delivered CFM at 175 PSI: 14.5
- Tank Capacity: 30 Gallons
- Compressor Pump: 3 Cylinder, 2-Stage
- Air Outlet Size: 1/2" NPT
- Overall Dimensions: L 46" x W 19" x H 37"
- Engine: Honda GX270, Commercial Grade, EPA/Carb Emission Compliant, 4 Cycle Air Cooled OHV Single Cylinder Gasoline Engine
- Shipping Weight: 627 lbs
