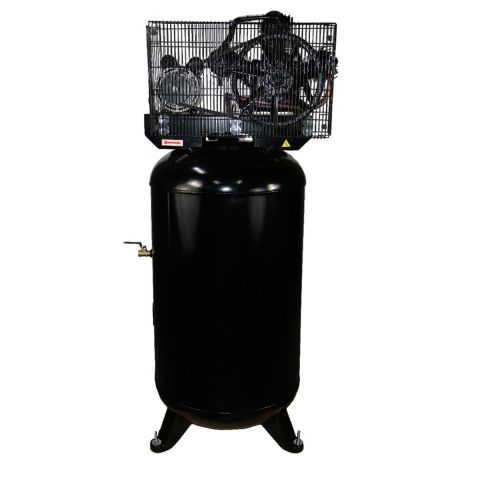

Atlas Equipment Air Force AF6 5HP 80 Gallon Air Compressor
Features and Benefits:
- 2-Stage Pump
- 5HP Motor
- 80 Gallon Vertical Tank (Made in the USA)
- Air Output 145-175 PSI
- Extremely Quiet Operation
- Set of Vibro-Isolation Pads Included
- Hands Free Tank Drain Extension
- Finned Tank Inlet Tube For Reduced Tank
- Water Accumulation
- Heavy Duty Metal Belt Guard
- Electric: 220volt/1phase, 30 Amp Breaker,Number 10 Wire Required
- 1 Year Parts Only Warranty
- Motor Running: 5 Horsepower
- Delivered-CFM 145 PSI: 18.5
- Delivered-CFM 175 PSI: 14.5
- Pressure Setting: 90-175 PSI
- Tank Capacity: 80 Gallons
- Air Outlet Size: 1/2" NPT (Ball Valve Included)
- Overall Dimensions: L 36" x W 24" x H 69"
- Motor Voltage: 220volt, 1PH,30 Amp Breaker Required
- Compressor Pump: 3 Cylinder, 2-Stage
- Shipping Weight: 485 lbs.
The Atlas Air Force AF6 is a entry level commercial grade two (2) stage vertical air compressor. This unit operates between145 and 175 PSI and will run our Atlas line of sandblast cabinets (when using Medium or Medium-Fine glass bead). Thecombination of the commercial grade low RPM motor and the heavy duty 3 cylinder (2 cylinders are low pressure and 1cylinder is high pressure) cast iron reciprocating air compressor pump delivers an incredible amount of air volume and airpressure for a very low price.The Atlas Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer yearsof trouble-free service. The Atlas Air Force shop compressors are built to the same exacting standards as the entire line ofAtlas professional grade automotive equipment.
