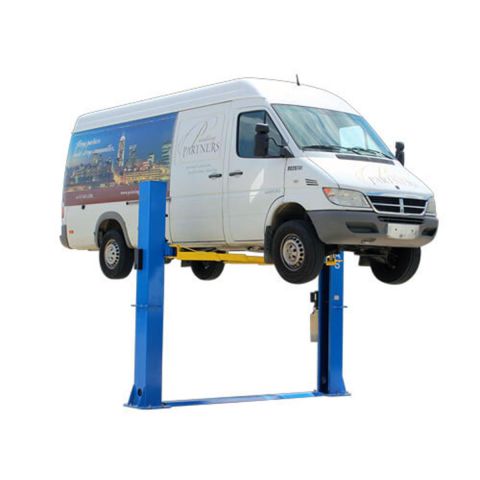

Atlas Equipment BP10000X Commercial Grade Baseplate 2-Post Lift 10,000 lb. Capacity

Special Price $4,249.00 Regular Price $4,349.00
Out of stock
SKU
ATEATTD-BP10000X-FPD
$1.00
Out of Stock online - call (866) 898-2604 to order
Proposition 65 Warning for California Consumers
icon
WARNING: cancer and reproductive harm - www.P65Warnings.ca.gov

Features and Benefits:

  • 10,000 lb. Capacity
  • Commercial Grade
  • Baseplate, Open-Top Style Lift
  • Overall Height: 111 7/8" (9' 3 7/8")
  • Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously
  • Super-Symmetric Arms
  • Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
  • Welded Support Gussets Increase Column Strength.
  • Automatic Arm Restraints
  • Powder Coat Finish
  • Free 12 Piece Truck Adapter Set
  • Shipping Weight: 1,640 LBS.
  • 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only

The Atlas® BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop.

Specifications:

  • Capacity: 10,000 LB.
  • Overall Floor Width: 139 1/8" (11' 7 1/8")
  • Outside Column to Outside Column: 134 1/2" (11' 2 1/2")
  • Maximum Lift Height (Without Adapters): 77 3/8"
  • Maximum Lift Height (With Adapters): 86 3/8"
  • Minimum Arm Height: 4"
  • Inside Column: 112 1/4" (9' 4 1/4")
  • Drive Thru: 101 1/4" (8' 5 1/4")
  • Column Size: 9 1/2" x 11"
  • Motor/Electrical Requirement: 220 volt single (1) phase. A 30 amp breaker is recommended
  • Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)
  • Shipping Weight: 1,640 LBS.
  • Adapter Heights: 4 Each 2", 3", 6"

Owner's Manual:

ATEATTD-BP10000X - Owner's Manual
