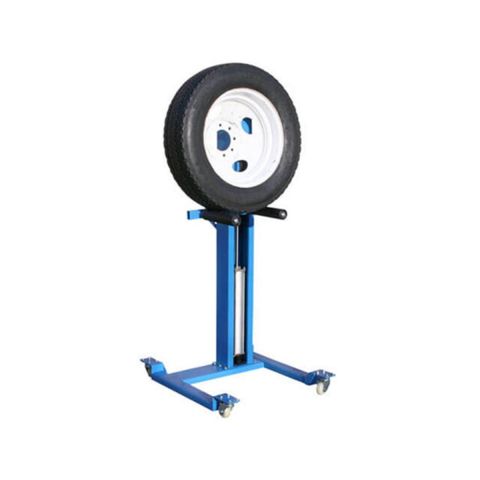

Atlas Equipment Portable Offset Pneumatic Wheel Lift
Features and Benefits:
- 180 lb. Capacity
- Offset Design with roller arms making it easy to position the wheel to line up with lug bolts
- 3" Poly Casters
- Shipping Dimensions: 58" x 14" x 15 1/2"
- Shipping Weight: 175 LBS.
- 90 Day Parts Only Warranty
- Capacity: 180 LBS.
- Max. Lifting Height: 40 1/2"
- Min. Lifting Height: 5 1/2"
- Arm Length: 12"
- Distance Between Arms: 10"
- Overall Height: 67 3/4"
- Overall Width: 29"
- Overall Depth: 34 1/2"
- Required Air Pressure: 116-145 psi
- Shipping Weight: 175 LBS.
The Atlas® Offset Pneumatic Portable Wheel Lift (AEZWL-2) is the perfect solution to prevent back injuries when lifting large wheel assemblies onto the shaft of a wheel balancer, onto a tire changer turntable, or even removing or installing tires on a car raised on a scissor or 2-Post lit.Today's wheels and tires are getting bigger and heavier. Many wheels are expensive and can be easily scratched or damaged. The Atlas® Offset air operated wheel lift will lift up to a 180 pound wheel easily and allow the operator to maneuver the wheel into the correct position without fear of wheel damage or back strain. The AEZWL-2's smooth air operation requires only 116-145 PSI air pressure and the 4 swivel casters make it easy to move and position where needed.
